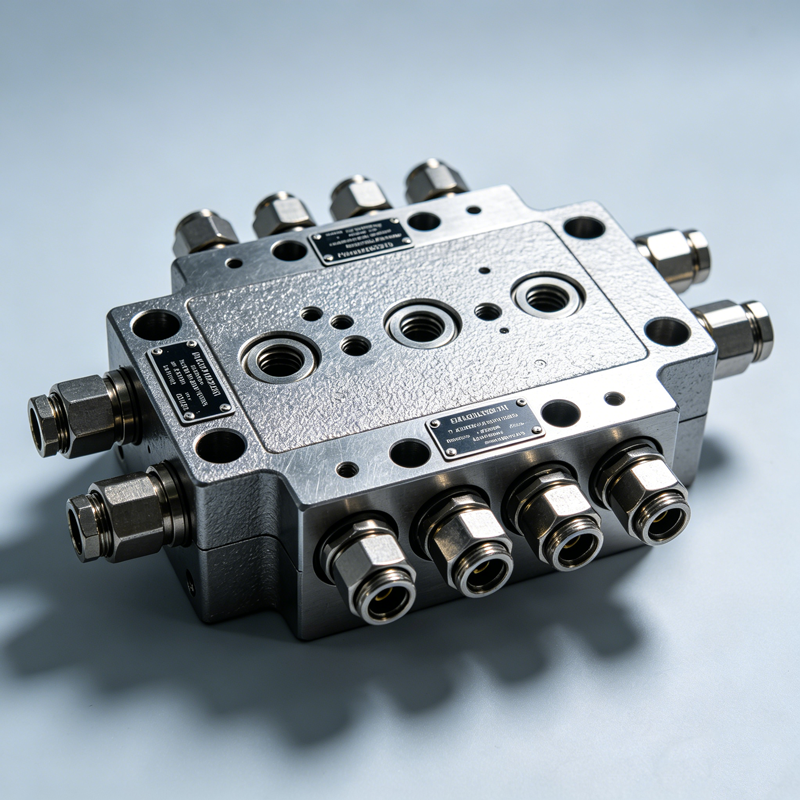

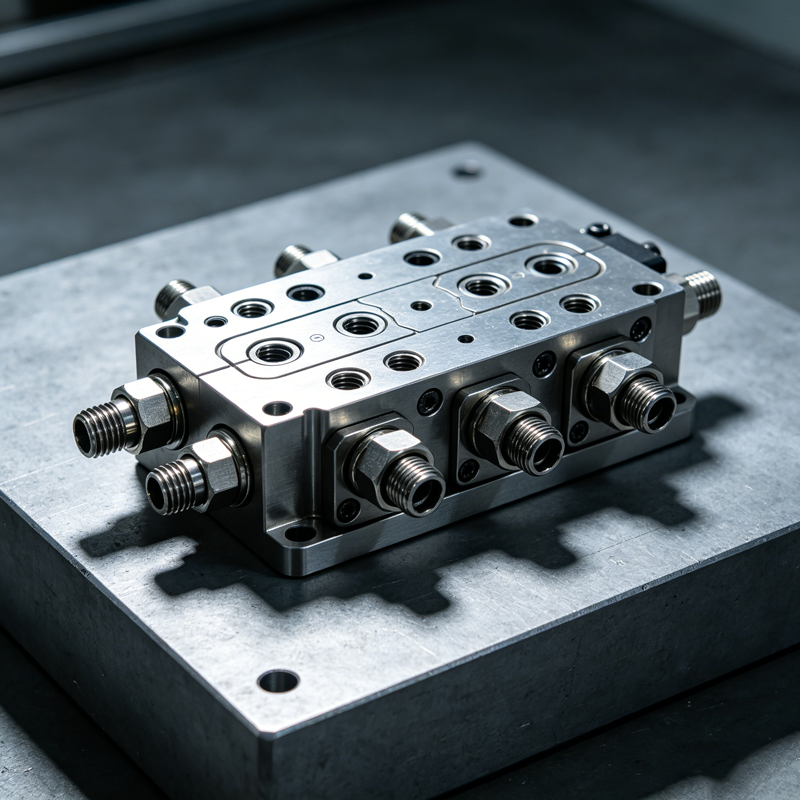

Our custom CNC-machined hydraulic manifold blocks are the core of high-performance hydraulic systems, engineered to integrate complex valve circuits, eliminate redundant piping, and maximize system reliability. Manufactured with 5-axis CNC precision and strict quality control, these manifold blocks deliver compact, leak-free hydraulic solutions for industrial, mobile, and aerospace applications.
✅ Custom-Engineered DesignFully tailored to your hydraulic schematic, with optimized internal flow channels to minimize pressure drop and ensure seamless integration of valves, sensors, and actuators.
✅ Ultra-Precision CNC MachiningMachined with tight tolerances (up to ±0.005mm) via 5-axis CNC milling and deep-hole drilling, guaranteeing perfect alignment, thread integrity, and leak-free performance.
✅ Premium Material & Surface TreatmentAvailable in high-strength carbon steel, alloy steel, aluminum alloy, and stainless steel. Standard surface treatments include zinc plating, passivation, and black oxide for superior corrosion resistance and durability.
✅ Modular & Space-Saving IntegrationConsolidates multiple hydraulic valves (solenoid valves, relief valves, check valves, throttle valves) into a single block, reducing system footprint, leak points, and maintenance time.
✅ Industry-Standard InterfacesCompatible with all standard hydraulic components, including cartridge valves, tube fittings, and pressure gauges, with thread options (metric, NPT, BSPP) to meet global specifications.
Technical Specifications
Parameter | Details |
Material Options | Carbon Steel, Alloy Steel, 6061/7075 Aluminum, 304/316 Stainless Steel |
Machining Tolerance | ±0.005mm (custom tolerance available) |
Max Block Size | Up to 1200x800x500mm (custom sizes supported) |
Thread Standards | Metric (M), NPT, BSPP, BSPT |
Surface Treatment | Zinc Plating, Passivation, Black Oxide, Anodizing, Nickel Plating |
Working Pressure | Up to 350 bar (5075 psi) |
Flow Capacity | Customized per system requirements |
Valve Compatibility | Solenoid Valves (SV), Relief Valves (RV), Check Valves (CV), Throttle Valves, Cartridge Valves |

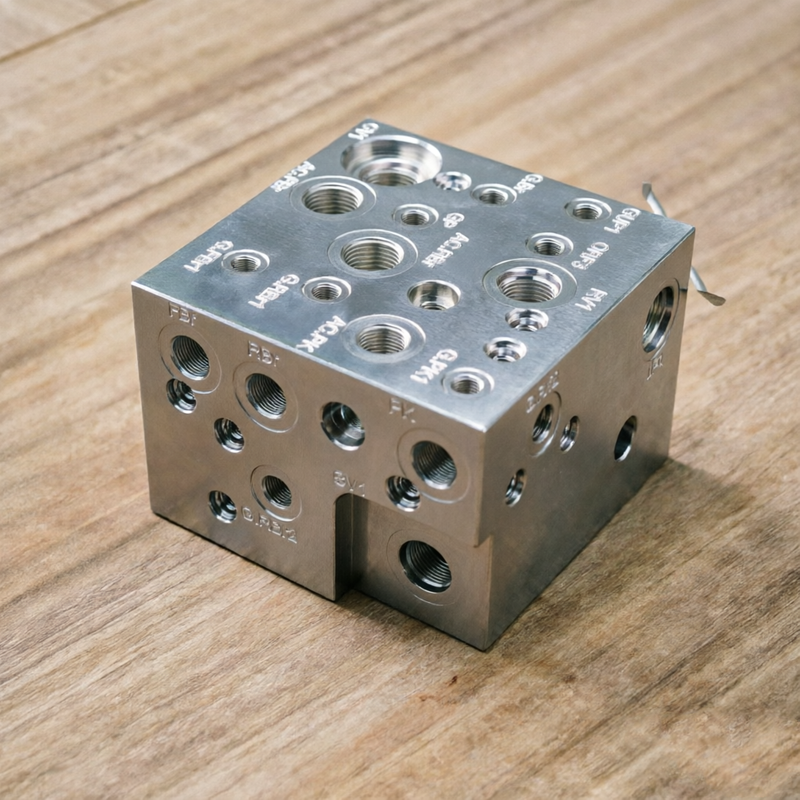

Marking | Component Type | Function |
RV1 | Relief Valve | System pressure protection & pressure regulation |
SV1 | Solenoid Valve | Electro-hydraulic control for flow direction & on/off operation |
ORF3 | Orifice / Check Valve | Flow restriction & one-way fluid control |
GPK1 / PK | Pressure Gauge / Pilot Port | Pressure monitoring & pilot control oil supply |
AC / FB / RB | Actuator / Control Port | Connection to hydraulic cylinders, motors, or control circuits |
GRB1 / GRB2 | Cartridge Valve Port | Installation of check valves, relief valves, or logic valves |
GUP1 | Unloading / Pressure Valve Port | Pressure holding & system unloading control |
· Industrial Machinery: CNC machine tools, injection molding machines, hydraulic presses
· Mobile Equipment: Construction machinery (excavators, cranes), agricultural equipment
· Aerospace & Defense: Hydraulic actuation systems for aircraft & military equipment
· Energy & Marine: Offshore equipment, ship hydraulic systems, power generation units
· Automation Lines: Robotic systems, material handling equipment, industrial automation
1.End-to-End Customization：From schematic design to final machining, we provide one-stop solutions tailored to your unique hydraulic system requirements.
2.Strict Quality Assurance：100% pressure testing, flow testing, and dimensional inspection to ensure compliance with ISO 9001 and international hydraulic standards.
3.Fast Lead Time：Advanced CNC machining centers and optimized production processes ensure rapid prototyping and mass production with on-time delivery.
4.Global Compatibility：Designed to meet global industry standards, with full documentation and technical support for international clients
To get a custom quote, please provide:
1. Hydraulic system schematic or 2D/3D drawings
2. Material & surface treatment requirements
3. Working pressure & flow rate specifications
4. Quantity & delivery timeline
Contact us today for a professional design consultation and competitive pricing!
