WM-101
Wanda
Swiss-type CNC Lathe (Swiss Screw Machine) Machining Process
Bar feeding: The bar stock is fed through the guide bush by the spindle.
Guiding & supporting: The guide bush fixes and supports the workpiece near the cutting area.
Turning & milling compound machining: Simultaneous or sequential execution of outer diameter turning, facing, grooving, threading, drilling, boring, side milling, polygon milling, etc.
Spindle axial feeding: The spindle moves forward to feed material, realizing stable cutting.
Cutting & unloading: After machining, the part is cut off and unloaded automatically.
| Parameter | Typical Range | Description |
|---|---|---|
| Machinable bar diameter | φ3–φ32 mm | Mainly for small and precision shafts |
| Max turning length | 150–400 mm | Depends on machine model |
| Spindle speed | 3000–12000 rpm | High-speed precision machining |
| Guide bush type | Fixed / Floating | Ensures stability for slender shafts |
| Number of tools | 10–30 | Turning + milling + drilling tools |
| C-axis positioning accuracy | ±0.002° | For indexing and milling |
| X/Z axis positioning accuracy | ±0.001 mm | High precision |
| Machining dimensional accuracy | IT5–IT7 | High-precision batch machining |
Surface roughness | Ra 0.005–0.01 μm | High-quality surface |
| Applicable materials | Aluminum, copper, stainless steel, titanium alloy, plastic | Wide material adaptability |

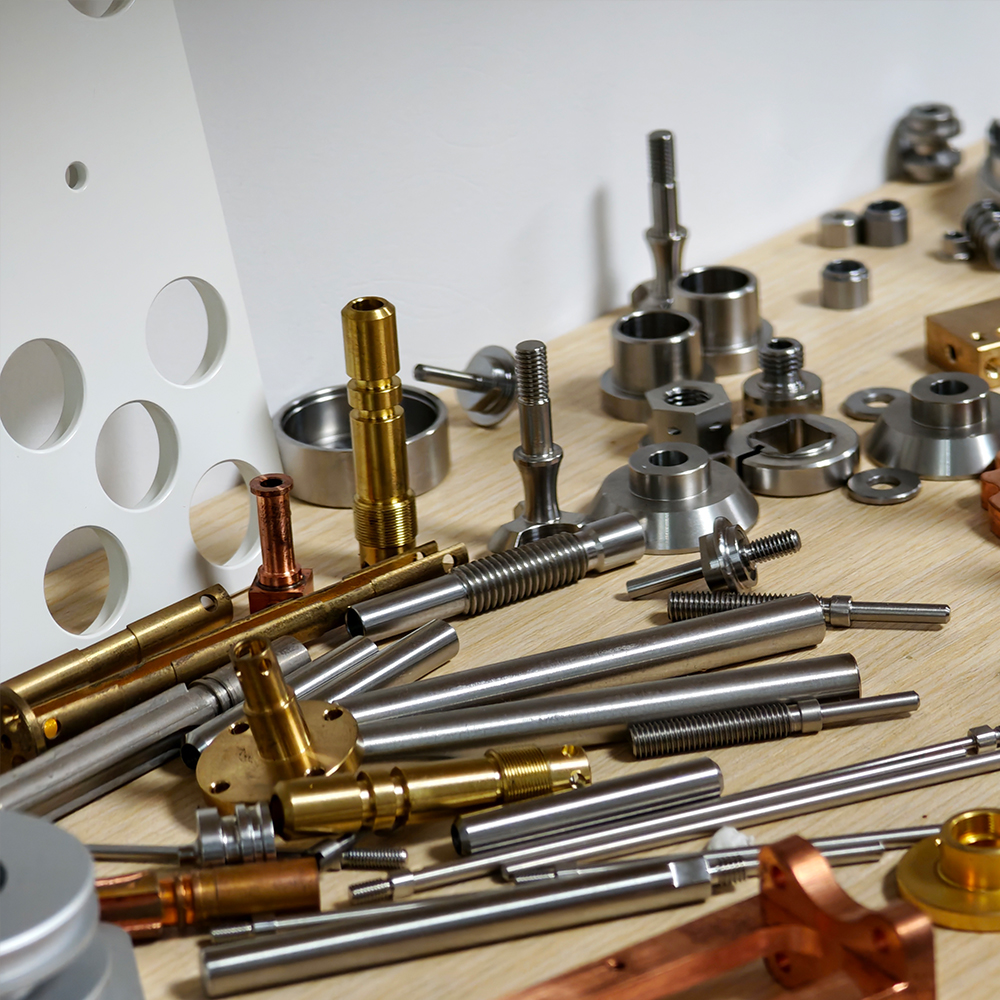

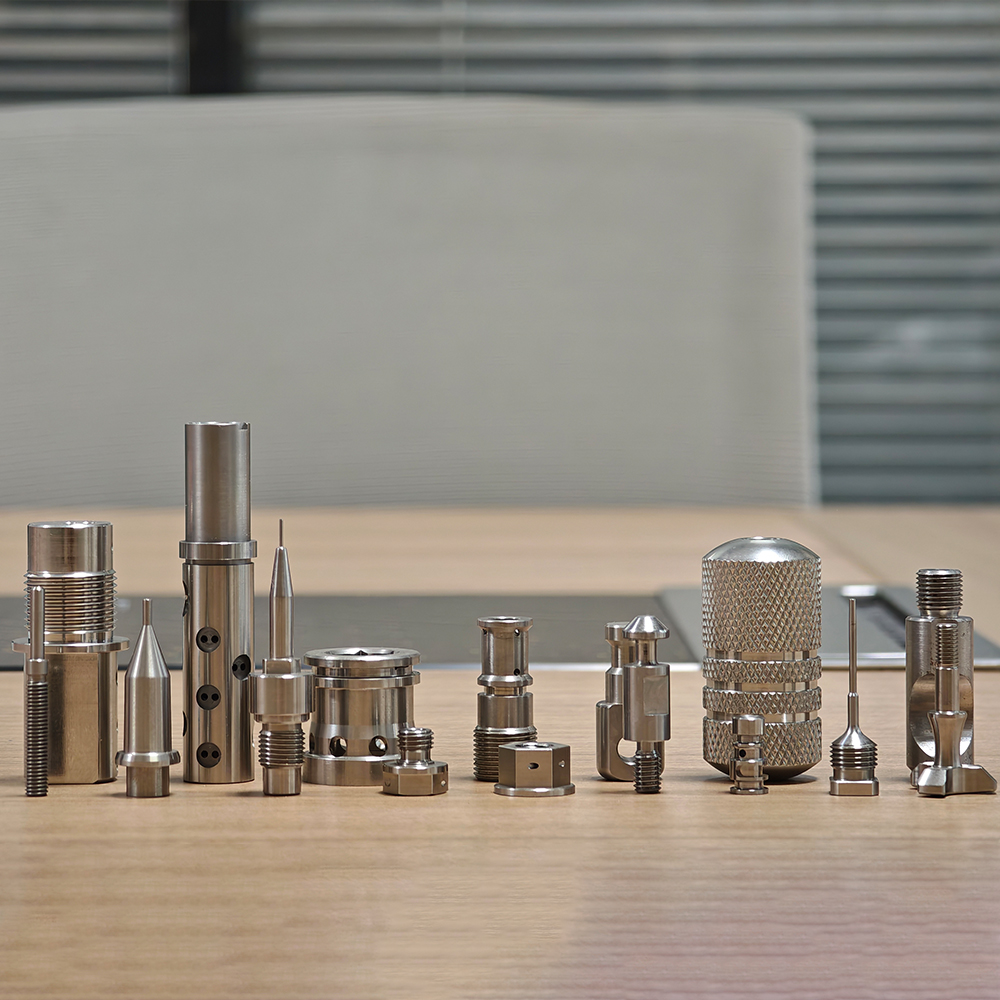

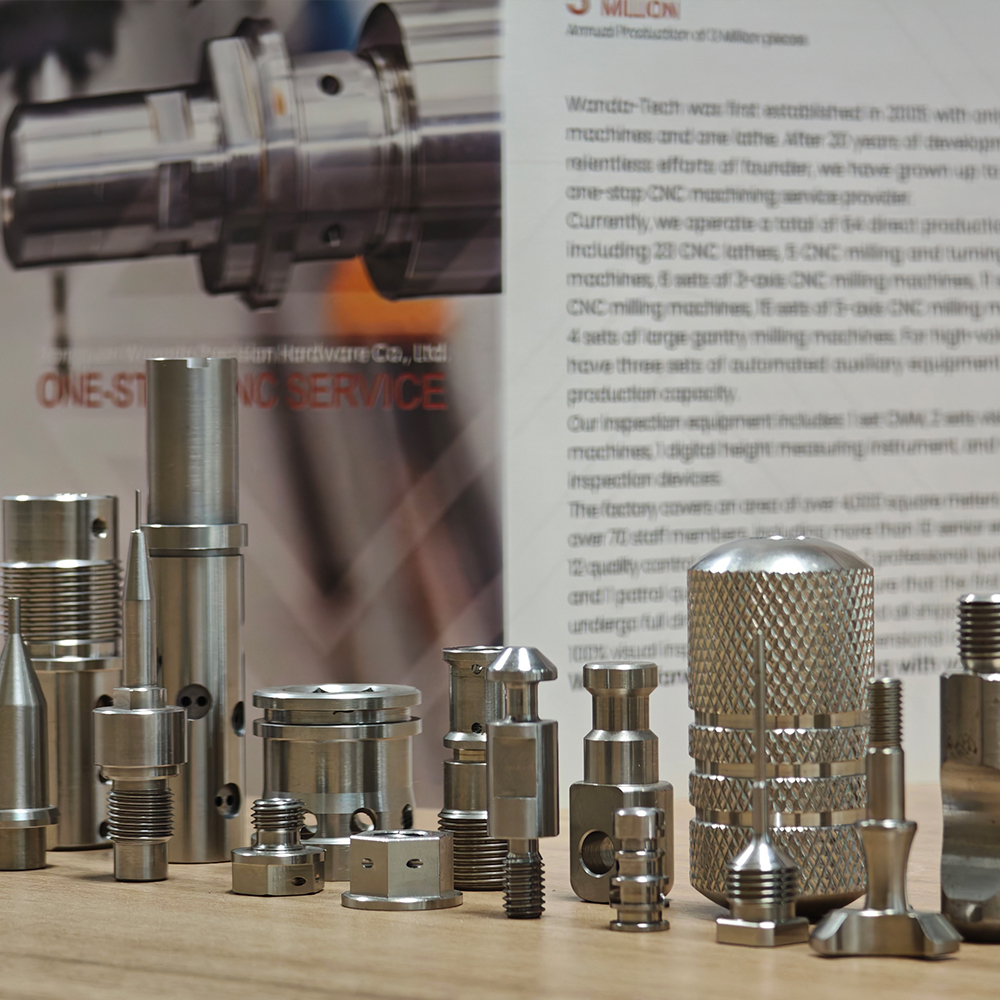

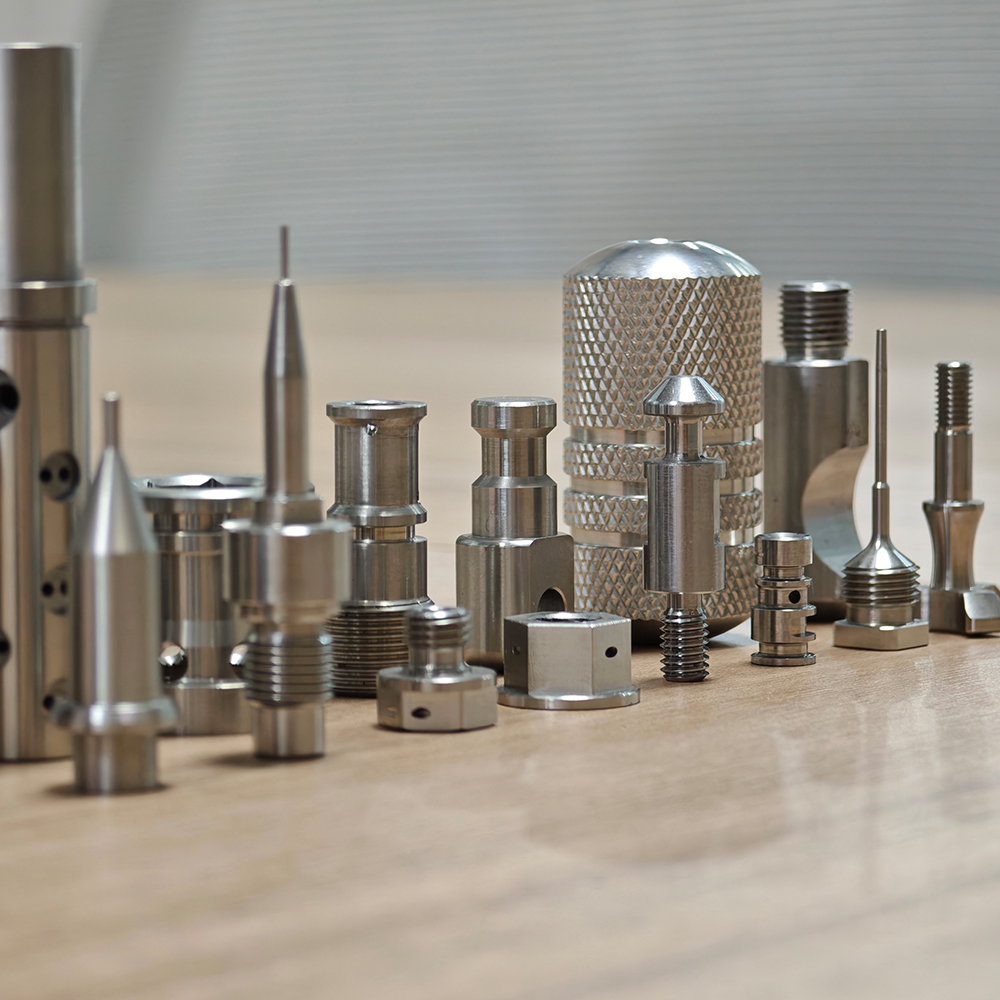

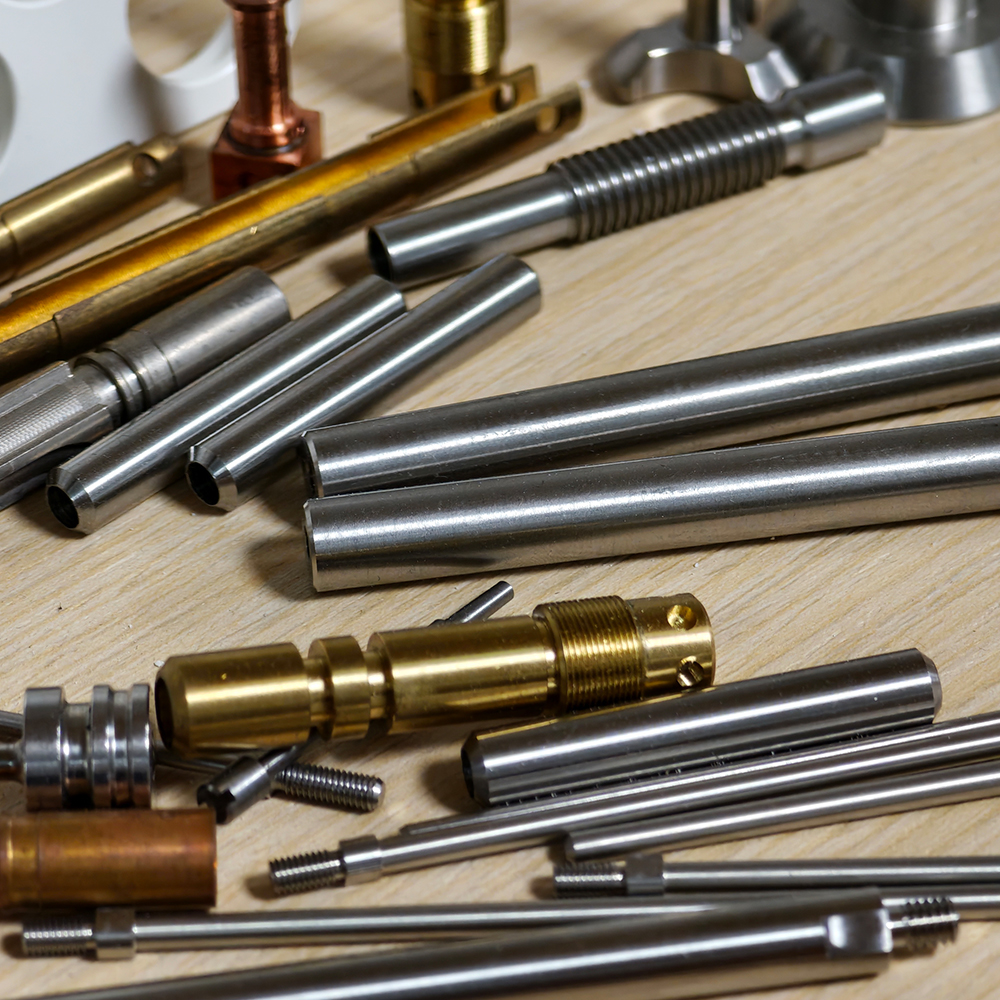

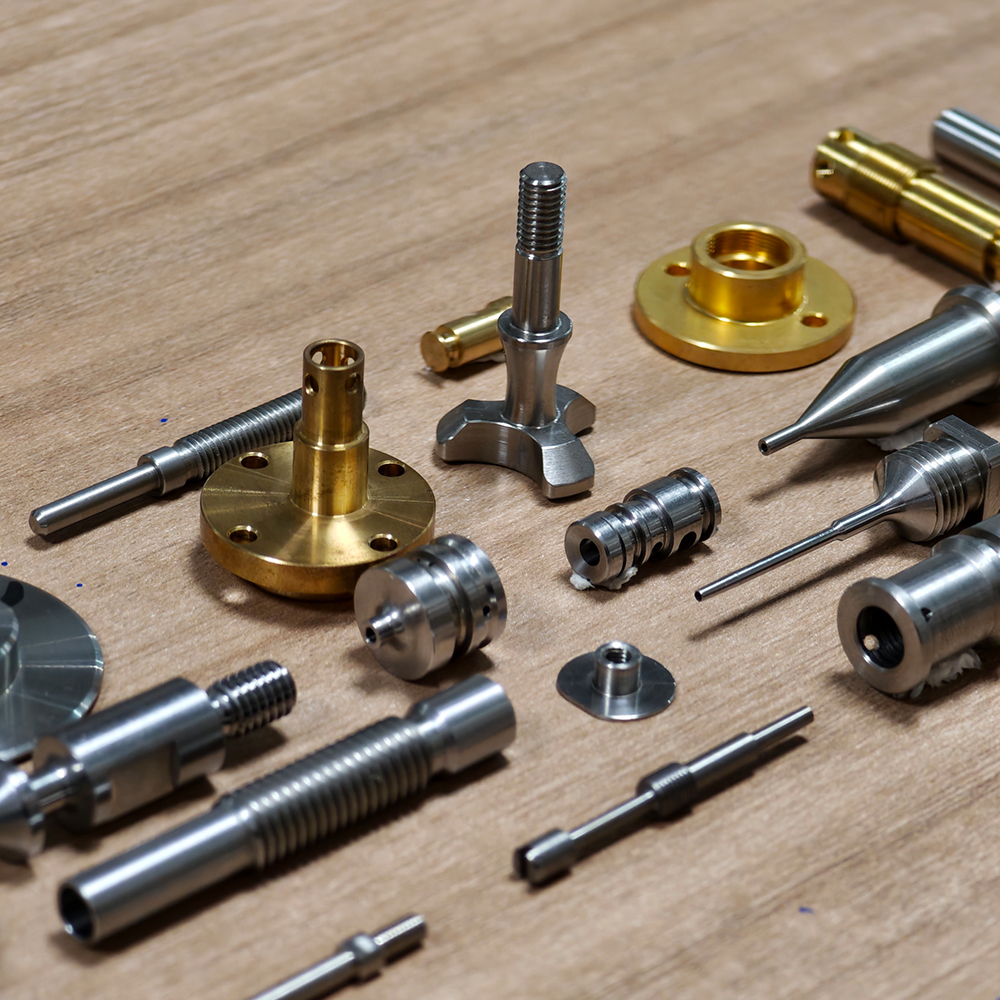

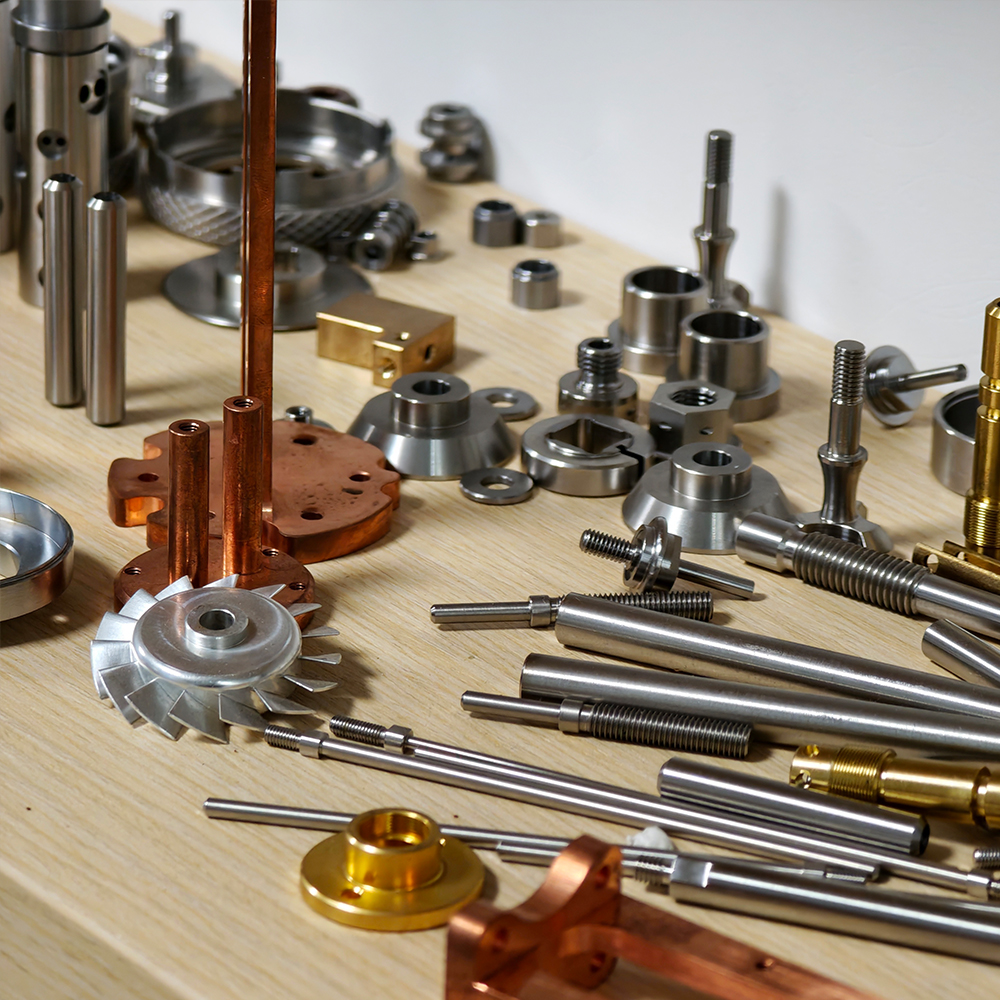

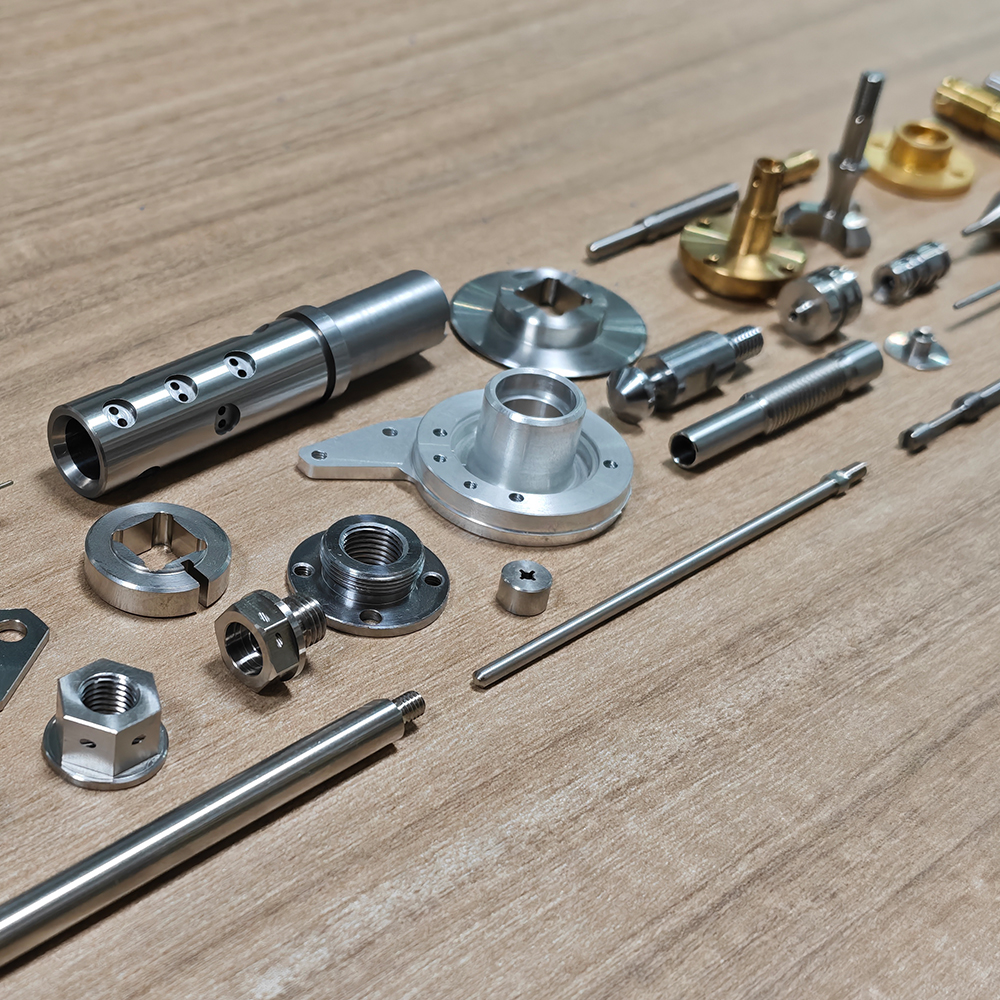

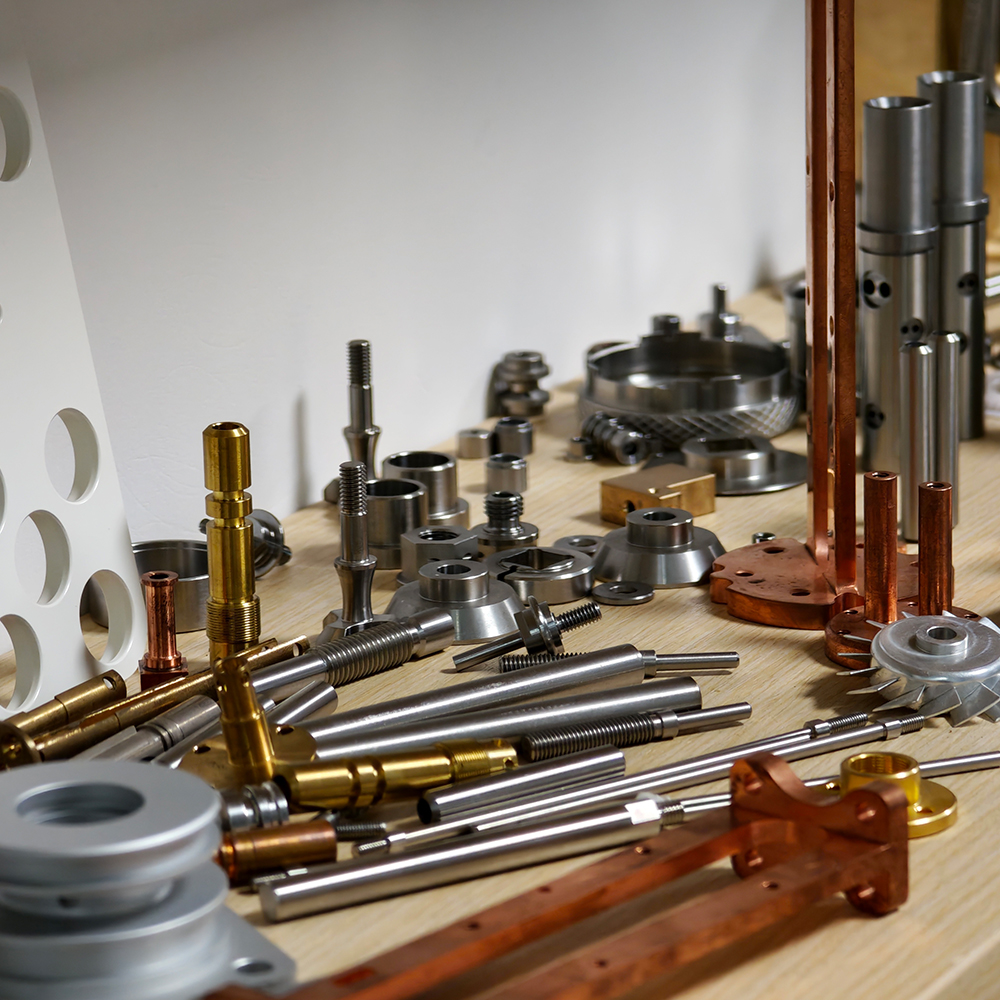

| Typical parts | Medical needles, shafts, pins, screws, connectors, automotive micro-shafts | Precision small parts |
1、Customers provide drawings or samples
Customers provide drawings (format: CAD.PDF.STP) or samples. The following information on the map is clear and clear: processing volume, material, precision and tolerance, surface treatment and special requirements. Please send the drawings to the mailbox.
2、Evaluate the offer
After the customer service receives the drawings and samples, they submit them to the technical department for serious evaluation. If there are any questions, they will communicate as soon as possible and wait for our reply and feedback on the quotation information.
3、Quotation time
Quotation time: within 24 hours, except for special circumstances, we will reply to the customer after receiving the drawings or samples.
4、Sign a contract
Negotiate with the customer to confirm the content of the parts quotation and order items, and confirm the payment and payment security of the required parts. We promise to do our best to provide customers with the best processing plan. Price is not the only factor in our service. Quality, delivery and after-sales service are equally important.
5、Service details
The customer service staff will pay attention to contact and promptly report the progress of the parts processing and the customer's packaging requirements during the delivery process.
6、QC inspection
After the parts are processed, they are delivered to the quality department for comprehensive inspection and shipment.
7、Acceptance of delivery
Arrange logistics and delivery matters, and reconfirm the information of the consignee or receiving company before delivery, and complete the payment at this time.
8、After-sales service
After the parts are completed, the customer will promptly feedback and receive information. If you have any questions, please contact the sales staff and after-sales staff in time, we will deal with them as soon as possible, so that customers can rest assured and look forward to more opportunities for cooperation.
