Key CNC Machining Challenges for Hot Runner Manifolds (2026 Industry Guide)

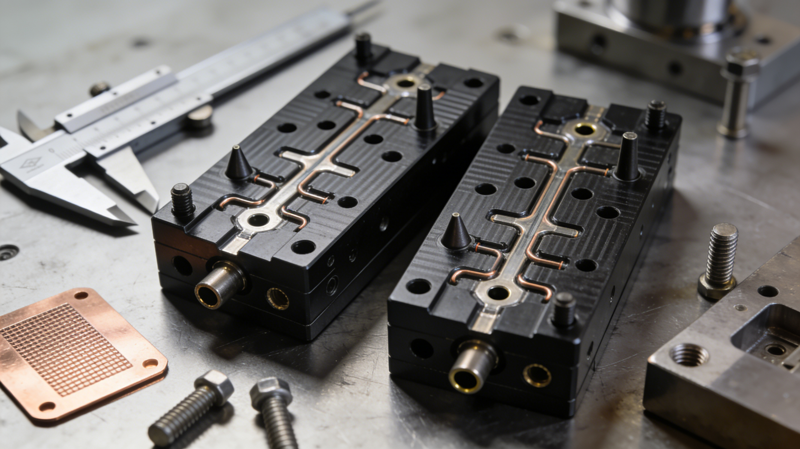

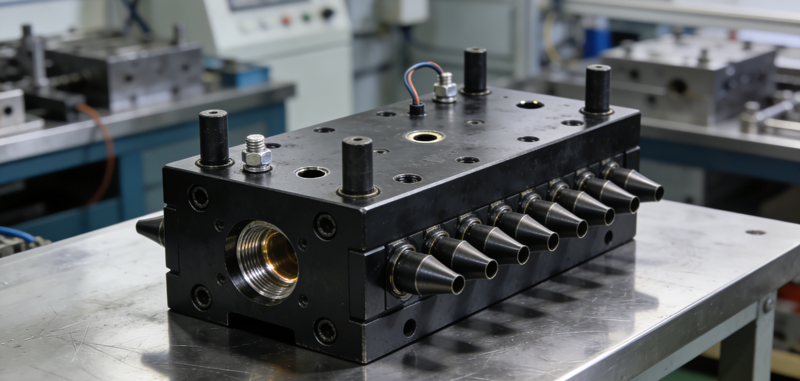

Hot runner manifolds are the core components of plastic injection mold hot runner systems, primarily fabricated from 45# steel and other mold steels. Widely deployed across automotive manufacturing, consumer electronics, medical devices, food packaging and home appliance industries, these critical parts produce automotive interior trims, electronic connectors, disposable medical supplies and high-volume packaging products, where precision and stable performance are non-negotiable. Even empowered by trending 2026 manufacturing technologies including 5-axis CNC machining, AI-powered CAM programming and smart manufacturing, their intricate structure and strict tolerance requirements still pose major challenges for modern CNC workshops worldwide.

Material-related difficulties stand out first. 45# steel is prone to built-up edges during cutting, which scratch internal melt flow channels and impair product quality. Severe cutting heat also triggers obvious thermal deformation, damaging the flatness and parallelism of sealing surfaces and eventually causing plastic leakage after assembly, raising the difficulty of high-precision CNC finishing.

Complex structural features bring more machining hurdles. Deep flow channels and tapered mounting ports require professional deep hole drilling and excellent chip evacuation; leftover burrs and tool marks will ruin surface finish and affect melt flow. Split manifold bodies and integrated positioning pillars easily cause tool vibration during milling, making it tough to maintain stringent geometric tolerances and dimensional consistency. Many workshops also combine EDM for auxiliary processing to achieve smooth inner runners, adding extra production steps and costs.

Repeated re-fixturing accumulates positioning errors, while thin-wall areas are susceptible to distortion. Post-machining heat treatment will further alter part dimensions. Nowadays, more manufacturers adopt digital twin simulation to optimize tool paths. Nevertheless, scientific CNC process planning, rational tool selection and standardized stress relief procedures remain indispensable to deliver qualified manifolds. Mastering these machining pain points has become a core competitiveness for CNC factories serving the high-precision injection molding supply chain.
