Common Materials for Hydraulic Valves: A Comprehensive Guide

Hydraulic valves are critical in industrial hydraulic systems, and material choice directly impacts performance, pressure resistance, leakage, and service life. Whether selecting materials for a standard Hydraulic valve, Solenoid valve, Control valve, Proportional valve, Custom hydraulic valve, or CNC valve parts, understanding core material requirements is key. This guide outlines key properties, common materials, heat treatment, and applications.

Core Material Performance Requirements for Hydraulic Valves

Hydraulic valves (especially spools, sleeves, and bodies) operate under harsh conditions. Materials must meet these key requirements:

High Strength & Pressure Resistance

Hydraulic systems operate at 21–42MPa (or higher). Materials must withstand this pressure without deformation or failure—critical for all Hydraulic valve types, including Solenoid valve and Proportional valve components.

High Hardness & Wear Resistance

Spools and sleeves slide reciprocally; poor wear resistance causes scratches, jamming, and leakage. This is vital for precision CNC valve parts and Proportional valve cores.

Good Dimensional Stability

Minimal deformation after heat treatment ensures precise tolerances, reducing leakage—essential for Custom hydraulic valve and Control valve precision.

Corrosion Resistance

Materials must resist hydraulic oil, seawater, and other corrosives to avoid rust or jamming, especially for Solenoid valve and Hydraulic valve in marine/chemical industries.

Good Machinability

Materials should be processable into complex shapes (e.g., deep holes) with high surface finish—crucial for CNC valve parts and Custom hydraulic valve components.

Welding & Assembly Performance

Valve bodies need strong welding/threading to prevent leakage, applying to all Hydraulic valve types from Control valve to Proportional valve.

Common Materials for Hydraulic Valves & Their Requirements

Material choice depends on the component and application. Below is a breakdown of common options:

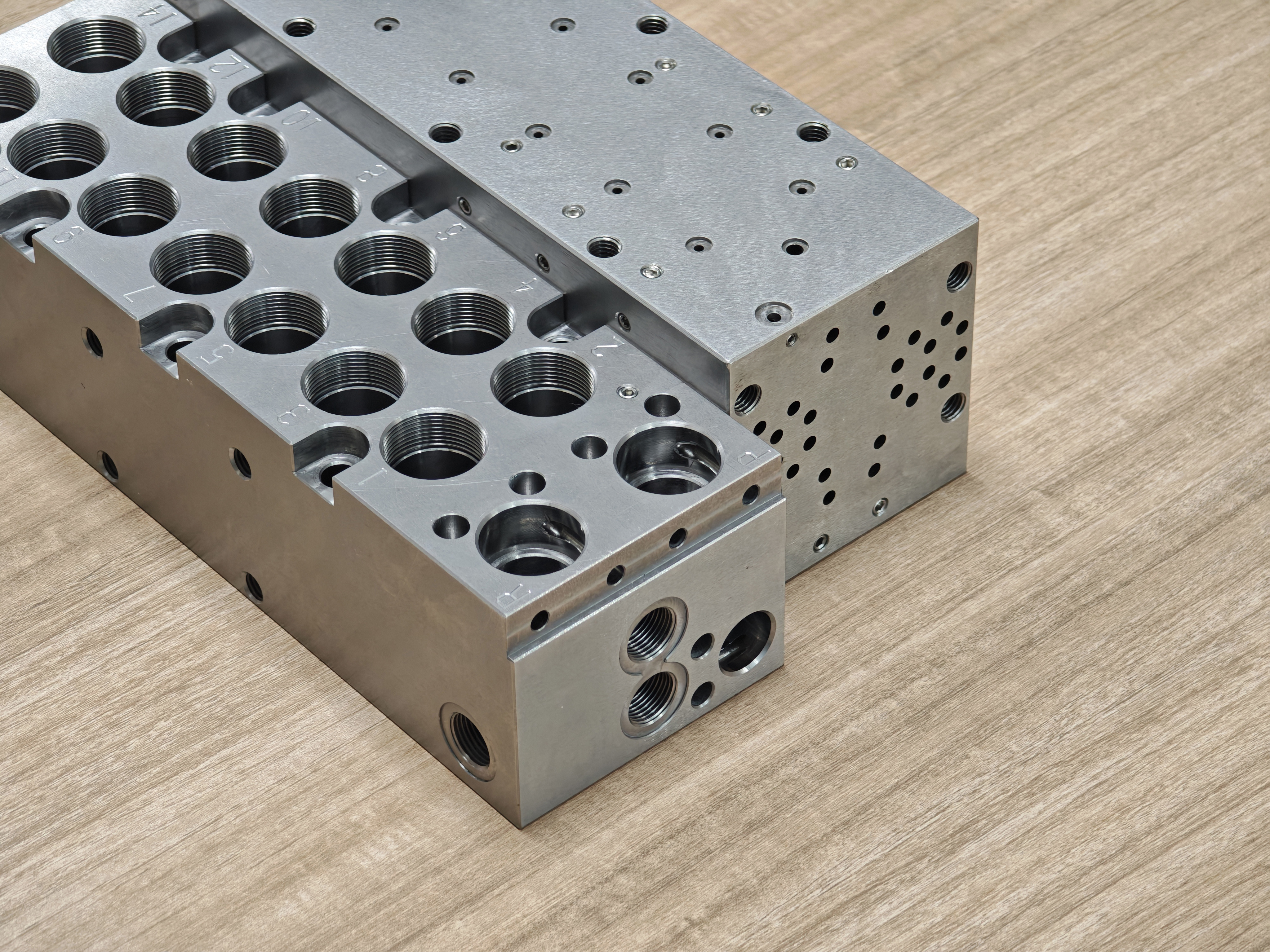

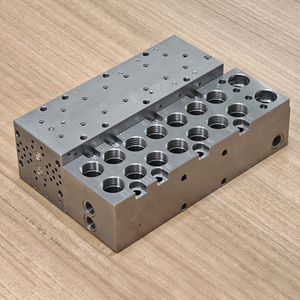

1. Valve Body Materials (Main Manifold Blocks, Valve Bodies)

The valve body is the Hydraulic valve backbone. Common materials:

• Ductile Iron (GG25 / GGG40 / GGG50): High strength, shock absorption, easy to machine, low cost. Ideal for medium-low pressure general Hydraulic valves, including basic Control valve models.

• Carbon Steel (20#, 45#, C45): Quenched/tempered for strength. Used in standard industrial valves and stack valves, suitable for Hydraulic valve and Solenoid valve bodies where corrosion resistance is non-critical.

• Stainless Steel (1.4404 / 316L, 1.4301 / 304): Corrosion-resistant, non-magnetic, weldable. Suitable for Hydraulic valve, Solenoid valve, and Proportional valve in marine/chemical industries.

2. Spool & Valve Sleeve Materials (Most Critical Precision Components)

Spools/sleeves directly affect flow control and leakage. Common materials:

• Alloy Steel (42CrMo / 4140 / 1.7225): Quenched/tempered/surface-hardened (HRC 28–35). Suitable for high-pressure Hydraulic valves, Proportional valves, and CNC valve parts.

• Alloy Steel (40Cr / 5140): Wear-resistant, low deformation. Reliable for Control valve and Solenoid valve spools/sleeves.

• Alloy Steel (16MnCr5 / 20CrMnTi): Carburized/quenched (surface HRC 58–62), tough core. Ideal for heavy-duty Hydraulic valves and Custom hydraulic valve components.

• Stainless Steel (17-4PH / 630): Precipitation-hardened, strong and corrosion-resistant. Suitable for high-end Hydraulic valves, Proportional valves, and Solenoid valves in harsh environments.

3. Seal & Spring Materials

Seals/springs ensure Hydraulic valve leak tightness. Common materials:

• Spring Steel (65Mn, 50CrVA): High fatigue life, used in all Hydraulic valve springs for consistent performance.

• Seal Materials (NBR, FKM, PU): Oil/temperature/pressure-resistant. NBR for general use, FKM for high temps, PU for high-pressure Hydraulic valve and Custom hydraulic valve seals.

Critical Heat Treatment & Surface Requirements

Heat treatment and surface finishing ensure Hydraulic valve performance, especially for CNC valve parts and Proportional valve components. Key requirements:

• Spool/Sleeve Heat Treatment: Quenching, tempering, and nitriding/carburizing for hardness and wear resistance.

• Surface Roughness: Ra ≤ 0.2μm (via honing) for smooth sliding—essential for precision Hydraulic valve, Solenoid valve, and Proportional valve performance.

• Hardness: Spools require HRC 55–62 to resist wear.

• Quality Control: No cracks, decarburization, or excess deformation—critical for Custom hydraulic valve and CNC valve parts.

Summary: Key Material Selection Principles

Material selection for Hydraulic valves (Hydraulic valve, Solenoid valve, Control valve, Proportional valve, Custom hydraulic valve, CNC valve parts) follows two core rules:

• Valve Body: Ductile iron, carbon steel, or stainless steel—prioritize strength and leak tightness.

• Spools/Sleeves: Alloy or stainless steel—prioritize hardness, wear resistance, minimal deformation, and precision.

Understanding these materials helps select the right option for your Hydraulic valve application, improving performance, reducing maintenance, and extending service life.
