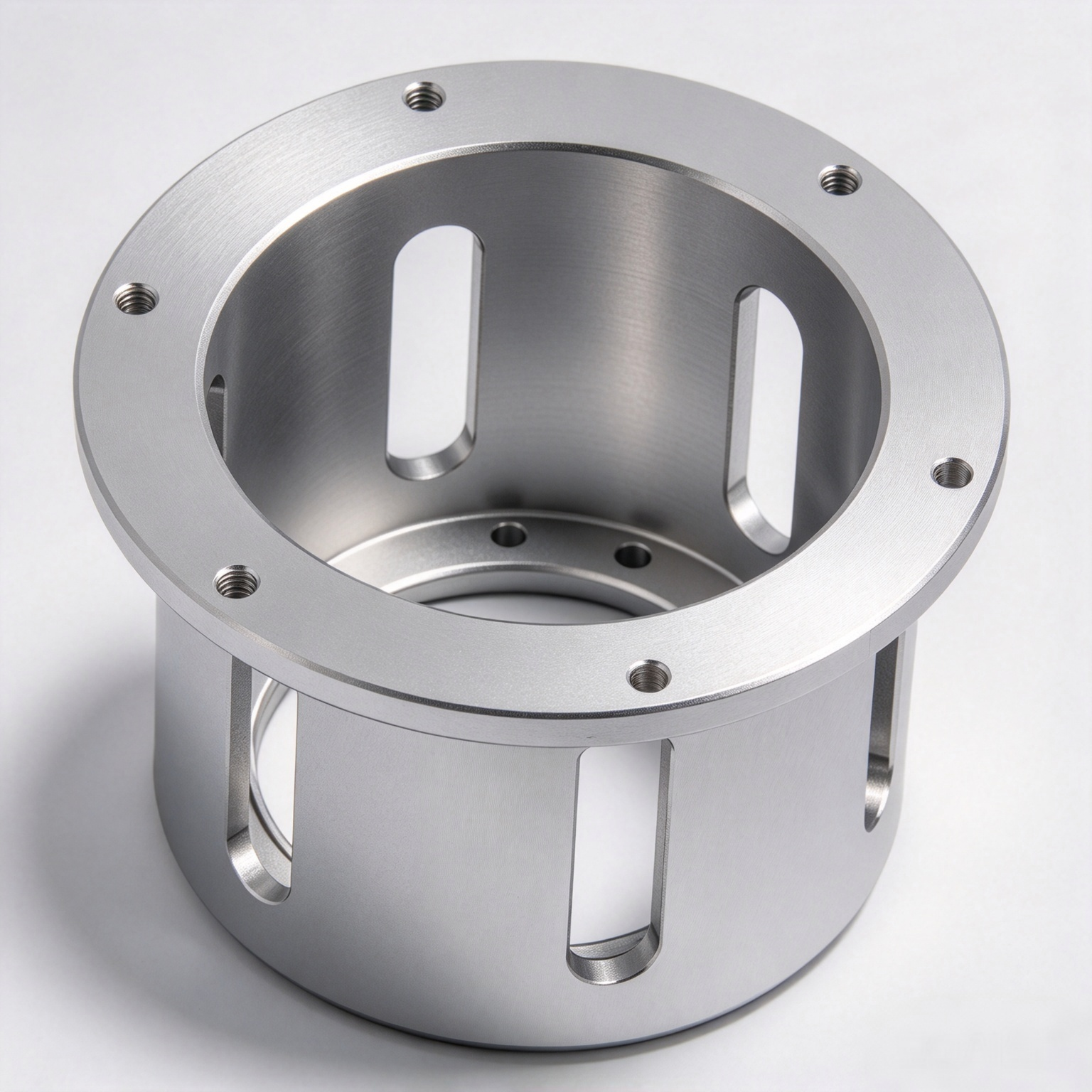

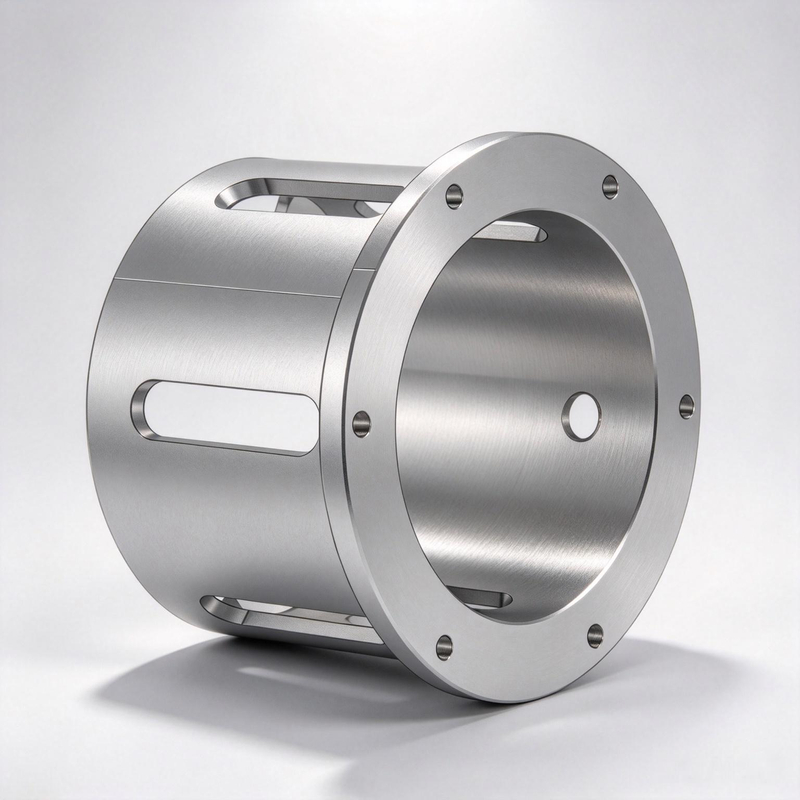

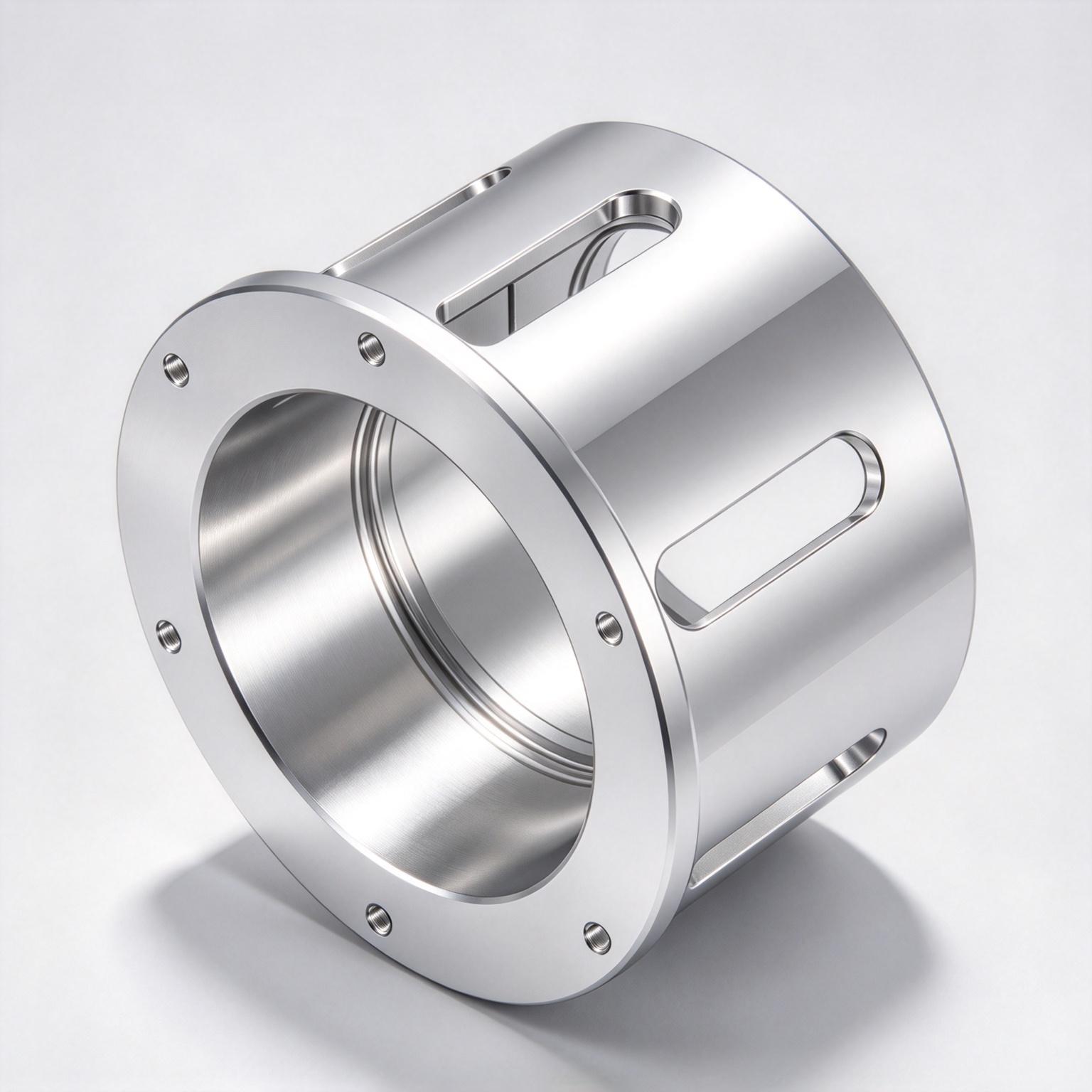

Custom precision CNC machined motor mount for humanoid robot neck joint. Aluminum alloy material, tight tolerance, anodizing surface treatment. We produce high-stiffness lightweight robot neck joint structural components for humanoid robot developers.
Overview
This humanoid robot neck joint motor mount is a core structural component for robot neck joint assembly. It secures the servo/actuator motor, transmits torque, supports head pitching & yaw rotation. The part needs to balance lightweight, structural rigidity and dimensional accuracy, widely used in humanoid robot prototype and mass production projects.
Material Selection
Optional material: Stainless steel, PEEK (for special low-weight / insulation requirement)
CNC Manufacturing Process
1. Raw material cutting: Aluminum bar stock cutting to blank size
2. CNC Milling & Turning composite machining
3. Precision hole machining: Thread holes & locating pin holes for motor assembly
4. Edge chamfering & radius rounding (R0.2)
5. Deburring
6. Surface treatment: Hard anodizing / Black anodizing
7. Dimensional inspection & CMM coordinate measuring
8. Packaging & shipping
CNC Machining Difficulties
1. Strict Dimensional & Position Tolerance The mounting holes for motor and joint bearing require tight positional tolerance. Minor hole position deviation will cause motor assembly jamming, increase rotation friction and reduce neck joint service life.
2. Thin-wall structure risk Neck bracket is designed lightweight with partial thin wall. During high-speed CNC cutting, workpiece vibration easily leads to deformation, affecting flatness. We use optimized clamping & low-vibration cutting parameters to control distortion.
3. Torque & stress requirement The neck joint constantly swings back and forth under dynamic load. Sharp corners will cause stress concentration. We machine rounded fillets on all transition edges to avoid fatigue cracking under repeated motion.
4. Surface quality control High-quality anodizing base surface required. Tool marks and burrs must be fully removed to guarantee stable coating and assembly fit.
Product Features
✅ Lightweight & high stiffness, reduce robot neck load ✅ Tight tolerance ±0.01~0.02mm, guarantee motor coaxiality ✅ Custom size & drawing service, OEM available ✅ Surface treatment: black / natural anodizing ✅ ISO9001 certified CNC workshop ✅ Suitable for prototype and low-volume serial production
Application Scenarios
Humanoid robot neck joint assembly, robot head actuator fixing, humanoid robot torso-head connection bracket, research & development robot platform, dexterous humanoid robot projects.
