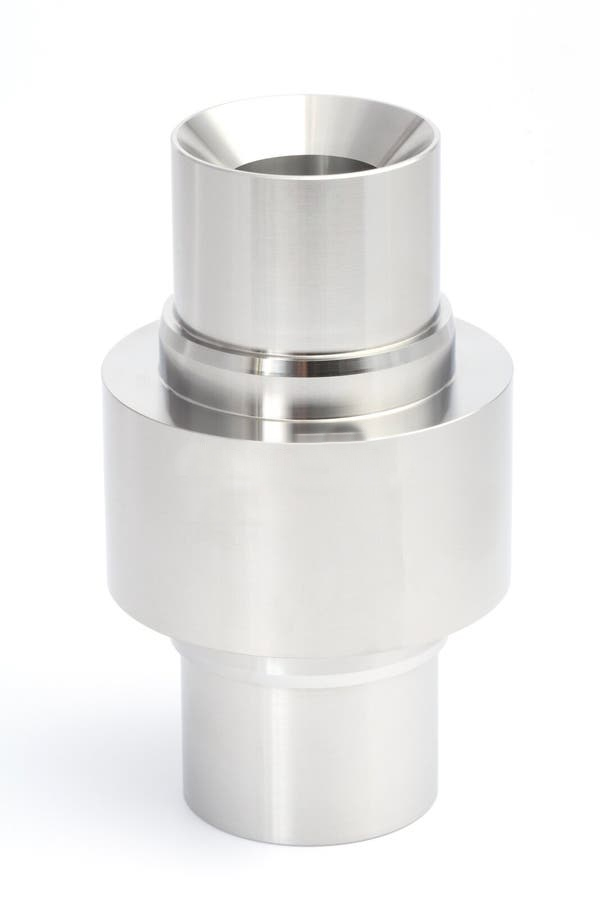

For automotive component engineers and OEM buyers, the Zylinderrohr (brake wheel cylinder tube) is a safety-critical slender hydraulic part fitted to drum brake assemblies and hydraulic clutch systems. Based on the PF12901A technical drawing (509mm overall length, Ø18 precision inner bore, 0.05mm coaxiality tolerance), this article details its CNC mass production standards, materials and common manufacturing pain points to help you select qualified processing suppliers.
Manufacturers exclusively adopt precision cold-drawn seamless steel tubes to minimize post-machining bending; ordinary hot-rolled pipes and stainless steel are eliminated for poor stability and sealing compatibility. Three mainstream steel grades cover different vehicle applications:
1. CK45 / AISI 1045 carbon steel: Economical option for light vans and mini trucks. After quenching and tempering to HRC 28–32, it withstands standard 16MPa brake hydraulic pressure with easy cutting performance.
2. 27SiMn alloy steel: Designed for heavy-duty commercial vehicles. Its high tensile strength resists long-cycle hydraulic fatigue and avoids tube expansion under heavy braking loads.
3. E355 / ST52 steel: European OEM matching material with ultra-low residual stress, effectively reducing deformation after machining slender long tubes and stabilizing inner wall roughness after honing.
Production is split into blank pretreatment, core CNC turning, post finishing and strict safety testing:
1. Preprocessing: Cold-drawn tubes are cut to fixed lengths, deburred, then treated with low-temperature stress relief annealing, quenching & tempering heat treatment, followed by full straightening to control raw tube straightness under 0.3mm/m.
2. CNC Precision Turning: Slant-bed lathes equipped with hydraulic steady rests process both ends. Rough turning shapes outer steps, 30°/60° sealing cones and M25×1 fine threads, leaving 0.2–0.3mm finishing allowance. After 4 hours of stress release, semi-finishing and finish turning are carried out; precision boring creates the Ø18 inner bore with reserved honing stock.
3. Post Finishing & Testing: Inner bore honing achieves the required Rz63 surface roughness to prevent piston seal wear. Composite ultrasonic deburring clears micro burrs at thread-cone transitions. Every finished tube undergoes a 1.5x standard pressure air tightness test with zero leakage mandatory.
4. Batch Inspection: Inspectors test coaxiality, bore tolerance, thread size and surface roughness for every batch to meet automotive safety Cpk≥1.67 standards.
The large length-diameter ratio brings unique precision barriers that increase scrap rates for inexperienced factories:
1. Vibration and bending deformation: Thin-walled long tubes sag under self-weight and vibrate during cutting, creating ripples on sealing surfaces. Segmented steady rest support and two-top-center clamping are required to hit the strict 0.05mm coaxiality target.
2. Dual precision requirements: The tight Ø18⁺⁰·⁰² bore tolerance paired with uniform honed surface directly determines brake leak resistance; improper honing allowance easily leads to dimensional scrap.
3. Fine thread & sealing cone precision control: M25×1 small-pitch threads are prone to tool chipping, while 30° sealing cones demand smooth surface finish to maintain high-pressure sealing performance.
4. Residual stress dimensional drift: Continuous cutting heat causes thermal expansion; uneven internal stress leads to slow size changes within 24 hours after processing. Intermittent cutting and sufficient coolant are used to stabilize dimensions.
